com.softwarefx.chartfx.desktop
Class AxisSection

java.lang.Object
  com.softwarefx.chartfx.desktop.AxisSectionBase
      com.softwarefx.chartfx.desktop.AxisSection

All Implemented Interfaces:

ILegendBoxItem, Serializable

public class AxisSection
extends AxisSectionBase
implements ILegendBoxItem, Serializable

Provides access to the AxisSection object.

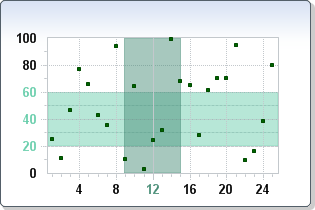

This Class is used to customize the axis sections of a chart. By creating axis sections, the developer can assign specific visual attributes to the newly created sections. By allowing this customization, developers can focus the end user's attention on particular values in the chart, or display additional details.

The Axis Section implementation is another analytical feature embedded into Chart FX for Java . Utilizing this object in your charting applications allows end users to quickly identify focus areas of a chart and determine whether values fall into this range. This enhancement makes data driven charts more pleasing to the eye and easily deciphered by users.

The Axis.getSections() property returns the AxisSection object which may be configured using the AxisSection and AxisSectionBase Class members.

The setFrom(double) property is used to specify the beginning value of the section range for a selected AxisSection object. The setTo(double) property is used to specify the ending value of the section range for a selected AxisSection object.

The setFontStyle(java.util.EnumSet) property is used to configure additional font attributes for the selected axis section.

See Also:

Serialized Form

Constructor Summary

AxisSection()

AxisSection(double from, double to, Color backColor)

Method Summary

Color	getBackColor() Gets the BackColor.
EnumSet<com.softwarefx.FontStyle>	getFontStyle() Gets the FontStyle.
double	getFrom() Gets the From.
int	getPoint() Gets the Point.
int	getSeries() Gets the Series.
String	getText() Gets the Text.
double	getTo() Gets the To.
boolean	isVisible() Gets the Visible.
void	setBackColor(Color value) Sets the AxisSection background color.
void	setFontStyle(EnumSet<com.softwarefx.FontStyle> value) Sets additional font attributes to the axis section.
void	setFrom(double value) Sets a value indicating the beginning value of the range for a selected AxisSection object.
void	setPoint(int value) Sets a value indicating the point an AxisSection is associated with.
void	setSeries(int value) Sets a value indicating the series an AxisSection is associated with.
void	setText(String value) Sets the text string for a selected BaseAxisSection object.
void	setTo(double value) Sets a value indicating the ending value of the range for a selected AxisSection object.
void	setVisible(boolean value) Shows or hides the selected axis section.

Methods inherited from class com.softwarefx.chartfx.desktop.AxisSectionBase

getGrids, getTextColor, setGrids, setTextColor

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

AxisSection

public AxisSection()

AxisSection

public AxisSection(double from,
                   double to,
                   Color backColor)

Method Detail

getBackColor

public Color getBackColor()

Gets the BackColor. For more detail see setBackColor(java.awt.Color).

getFontStyle

public EnumSet<com.softwarefx.FontStyle> getFontStyle()

Gets the FontStyle. For more detail see setFontStyle(java.util.EnumSet).

getFrom

public double getFrom()

Gets the From. For more detail see setFrom(double).

getPoint

public int getPoint()

Gets the Point. For more detail see setPoint(int).

getSeries

public int getSeries()

Gets the Series. For more detail see setSeries(int).

getText

public String getText()

Gets the Text. For more detail see setText(java.lang.String).

getTo

public double getTo()

Gets the To. For more detail see setTo(double).

isVisible

public boolean isVisible()

Gets the Visible. For more detail see setVisible(boolean).

setBackColor

public void setBackColor(Color value)

Sets the AxisSection background color.

Remarks:

For more information regarding the Color type, please refer to the Java API Documentation.

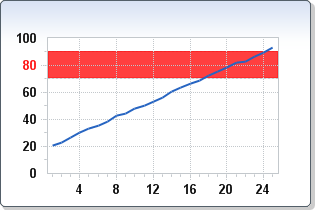

Below, the Y axis section backcolor is set to Red:

See Also:

Axis.getSections(), setFrom(double), setTo(double), Axis, AxisSection

setFontStyle

public void setFontStyle(EnumSet<com.softwarefx.FontStyle> value)

Sets additional font attributes to the axis section.

Remarks:

For more information regarding the FontStyle type, please refer to the Java API Documentation.

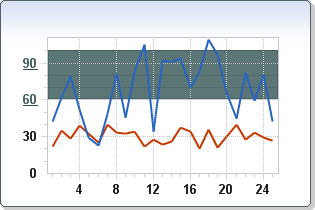

Below, the Y axis section fontstyle is set to underline:

See Also:

Axis.getSections(), AxisSection

setFrom

public void setFrom(double value)

Sets a value indicating the beginning value of the range for a selected AxisSection object.

Remarks:

The setTo(double) property is used to specify the ending value of the section range for a selected AxisSection object.

The AxisSectionBase Class members are used to customize the mayor gridlines, minor gridlines, TextColor, and Link for an AxisSection object.

The setFontStyle(java.util.EnumSet) property is used to configure additional font attributes for the selected axis section.

The Axis.getSections() property returns the AxisSection object which may be configured using the AxisSection and AxisSectionBase Class members.

See Also:

setTo(double), AxisSection

setPoint

public void setPoint(int value)

Sets a value indicating the point an AxisSection is associated with.

Remarks:

See Also:

setSeries(int), Axis.getSections(), Axis, AxisX, AxisY

setSeries

public void setSeries(int value)

Sets a value indicating the series an AxisSection is associated with.

Remarks:

See Also:

setPoint(int), Axis.getSections(), Axis, AxisX, AxisY

setText

public void setText(String value)

Sets the text string for a selected BaseAxisSection object.

Remarks:

This should be used if you would like to label the sections you create for clarity.

This title appears as a tooltip for the user.

setTo

public void setTo(double value)

Sets a value indicating the ending value of the range for a selected AxisSection object.

Remarks:

The setFrom(double) property is used to specify the beginning value of the section range for a selected AxisSection object.

The AxisSectionBase Class members are used to customize the mayor gridlines, minor gridlines, textColor and Link for a AxisSection object.

The setFontStyle(java.util.EnumSet) property is used to configure additional font attributes for the selected axis section.

The Axis.getSections() property returns the AxisSection object which may be configured using the AxisSection and AxisSectionBase Class members.

See Also:

setFrom(double), AxisSectionBase

setVisible

public void setVisible(boolean value)

Shows or hides the selected axis section.

Remarks:

Hiding the axis section does not destroy or lose previous settings assigned by other properties.
