com.softwarefx.chartfx.server
Class CellAttributes

java.lang.Object
  com.softwarefx.chartfx.server.CellAttributes

public class CellAttributes
extends Object

Allows you to modify the attributes of a Cell in the DataGrid.

Allows you to modify the attributes of a particular Cell or entire Row in the DataGrid.

The following image shows a particular Cell in the DataGrid with a yellow background, Italic font, and a thicker border:

Constructor Summary

CellAttributes()

Method Summary

Color	getBackColor() Gets the BackColor.
Color	getBorderColor() Gets the BorderColor.
int	getBorderWidth() Gets the BorderWidth.
EnumSet<FontStyle>	getFontStyle() Gets the FontStyle.
Color	getTextColor() Gets the TextColor.
void	setBackColor(Color value) Sets the background color for a particular Cell or entire Row in the DataGrid.
void	setBorderColor(Color value) Allows you to set the color of the border for a particular Cell or entire Row in the DataGrid.
void	setBorderWidth(int value) Allows you to set the width of the Cell border in pixels for a particular Cell or entire Row in the DataGrid.
void	setFontStyle(EnumSet<FontStyle> value) Allows you to set the style of the font for a particular Cell or entire Row in the DataGrid.
void	setTextColor(Color value) Allows you to set the text color for a particular Cell or entire Row in the DataGrid.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

CellAttributes

public CellAttributes()

Method Detail

getBackColor

public Color getBackColor()

Gets the BackColor. For more detail see setBackColor(java.awt.Color).

getBorderColor

public Color getBorderColor()

Gets the BorderColor. For more detail see setBorderColor(java.awt.Color).

getBorderWidth

public int getBorderWidth()

Gets the BorderWidth. For more detail see setBorderWidth(int).

getFontStyle

public EnumSet<FontStyle> getFontStyle()

Gets the FontStyle. For more detail see setFontStyle(java.util.EnumSet).

getTextColor

public Color getTextColor()

Gets the TextColor. For more detail see setTextColor(java.awt.Color).

setBackColor

public void setBackColor(Color value)

Sets the background color for a particular Cell or entire Row in the DataGrid.

Remarks:

You need to have the data editor visible in order to see the changes made with BackColor property. Use the DockableBar.setVisible(boolean) property to enable the data editor.

For more information regarding the Color type, please refer to the Java API Documentation.

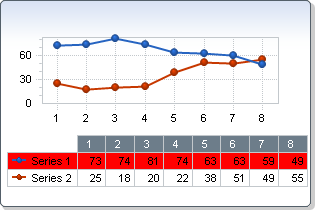

Below, the data grid cell Attribute backcolor for the first series is set to Red:

See Also:

DataGrid

setBorderColor

public void setBorderColor(Color value)

Allows you to set the color of the border for a particular Cell or entire Row in the DataGrid.

Remarks:

For more information regarding the Color type, please refer to the Java API Documentation.

Below, the border color for the first series is set to Red:

See Also:

DataGrid

setBorderWidth

public void setBorderWidth(int value)

Allows you to set the width of the Cell border in pixels for a particular Cell or entire Row in the DataGrid.

Remarks:

This property allows you to configure the width of the DataGrid Cell border using units other than pixels.

Below, the border width for the first series is set to 4:

See Also:

DataGrid

setFontStyle

public void setFontStyle(EnumSet<FontStyle> value)

Allows you to set the style of the font for a particular Cell or entire Row in the DataGrid.

Remarks:

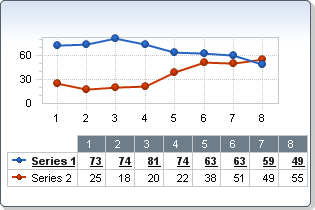

Below, the font style for the first series is set to Bold and Underline:

See Also:

DataGrid

setTextColor

public void setTextColor(Color value)

Allows you to set the text color for a particular Cell or entire Row in the DataGrid.

Remarks:

For more information regarding the Color type, please refer to the Java API Documentation.

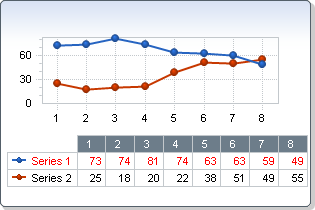

Below, the text color for the first series is set to Red:

See Also:

DataGrid
