com.softwarefx.chartfx.server
Class LineAttributes

java.lang.Object
  com.softwarefx.chartfx.server.LineAttributes

public class LineAttributes
extends Object

Provides access to the LineAttributes object.

The LineAttibutes members allows customization of the lines at the PointAttributes level. The PointAttributes's PointAttributes.getLine() property will provide access to the LineAttributes for each particular point of the chart.

chart1.Points[0, 2].Line.Width = 4;

chart1.Points[0, 2].Line.EndCap = System.Drawing.Drawing2D.LineCap.ArrowAnchor;

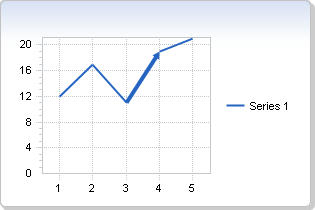

Will have the following effect in a Line chart:

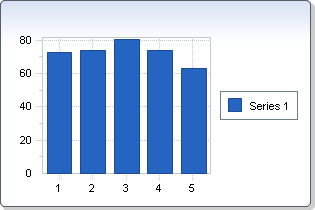

And will have the following effect in a Bar chart:

Constructor Summary

LineAttributes()

Method Summary

LineCap	getEndCap() Gets the EndCap.
LineCap	getStartCap() Gets the StartCap.
DashStyle	getStyle() Gets the Style.
short	getWidth() Gets the Width.
void	setEndCap(LineCap value) Sets a marker shape at the end of a PointAttribute's Line.
void	setStartCap(LineCap value) Sets a marker shape at the start of a PointAttribute's Line.
void	setStyle(DashStyle value) Sets the style for a PointAttribute's Line.
void	setWidth(short value) Sets the width for a PointAttribute's Line.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

LineAttributes

public LineAttributes()

Method Detail

getEndCap

public LineCap getEndCap()

Gets the EndCap. For more detail see setEndCap(com.softwarefx.LineCap).

getStartCap

public LineCap getStartCap()

Gets the StartCap. For more detail see setStartCap(com.softwarefx.LineCap).

getStyle

public DashStyle getStyle()

Gets the Style. For more detail see setStyle(com.softwarefx.DashStyle).

getWidth

public short getWidth()

Gets the Width. For more detail see setWidth(short).

setEndCap

public void setEndCap(LineCap value)

Sets a marker shape at the end of a PointAttribute's Line.

Remarks:

The PointAttributes.getLine() property of the PointAttributes Class is used to return a LineAttributes object.

A starting marker shape may be applied to lines using the setStartCap(com.softwarefx.LineCap) property.

These are the supported styles:
AnchorMask
ArrowAnchor
Custom
DiamondAnchor
Flat
NoAnchor
Round
RoundAnchor
Square
SquareAnchor
Triangle

See Also:

setStartCap(com.softwarefx.LineCap), setStyle(com.softwarefx.DashStyle), setWidth(short), PointAttributes.getLine(), PointAttributes

setStartCap

public void setStartCap(LineCap value)

Sets a marker shape at the start of a PointAttribute's Line.

Remarks:

The PointAttributes.getLine() property of the PointAttributes Class is used to return a LineAttributes object.

An ending marker shape may be applied to lines using the setEndCap(com.softwarefx.LineCap) property.

These are the supported styles:
AnchorMask
ArrowAnchor
Custom
DiamondAnchor
Flat
NoAnchor
Round
RoundAnchor
Square
SquareAnchor
Triangle

See Also:

setEndCap(com.softwarefx.LineCap), setStyle(com.softwarefx.DashStyle), setWidth(short), PointAttributes.getLine(), PointAttributes

setStyle

public void setStyle(DashStyle value)

Sets the style for a PointAttribute's Line.

Remarks:

The PointAttributes.getLine() property of the PointAttributes Class is used to return a LineAttributes object.

The setEndCap(com.softwarefx.LineCap) and setStartCap(com.softwarefx.LineCap) properties allow you to configured various shapes at the beginning and end of a selected line.

The setWidth(short) property gets or sets the width for a PointAttribute's Line.

For more information regarding the Drawing type, please refer to the Java API Documentation.

These are the supported DashStyles:
Custom
Dash
DashDot
DashDotDot
Dot
Solid

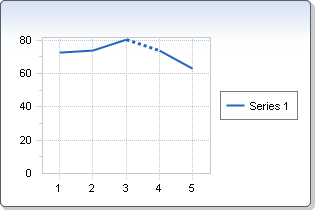

The image below depicts a 'Dot' Line style assigned to the second point:

See Also:

setStartCap(com.softwarefx.LineCap), setEndCap(com.softwarefx.LineCap), setWidth(short), PointAttributes.getLine(), PointAttributes

setWidth

public void setWidth(short value)

Sets the width for a PointAttribute's Line.

Remarks:

The PointAttributes.getLine() property of the PointAttributes Class is used to return a LineAttributes object.

The setEndCap(com.softwarefx.LineCap) and setStartCap(com.softwarefx.LineCap) properties allow you to configured various shapes at the beginning and end of a selected line.

The setStyle(com.softwarefx.DashStyle) property gets or sets the style for a PointAttribute's Line.

See Also:

setStartCap(com.softwarefx.LineCap), setEndCap(com.softwarefx.LineCap), setStyle(com.softwarefx.DashStyle), PointAttributes.getLine(), PointAttributes
