com.softwarefx.chartfx.server.statistical
Class Galleries

java.lang.Object
  com.softwarefx.chartfx.server.statistical.Galleries

public class Galleries
extends Object
extends Object

Provides access to the Galleries object

The Chart FX for .NET Statistical Extension provides additional statistical gallery types. The supported members of this class expose the properties used to return the a selected statistical gallery object which may then be assigned to the chart's GalleryObj property. Additionally, each of the supported members may be used to access the repective class object for further attribute assignment.

Constructor Summary
`Galleries()`

Method Summary
`BoxPlot`	`getBoxPlot()` Returns a BoxPlot gallery object.
`com.softwarefx.chartfx.server.statistical.Galleries.Gallery`	`getCurrent()` Gets the Current.
`FrequencyPolygon`	`getFrequencyPolygon()` Returns a FrequencyPolygon gallery object.
`Histogram`	`getHistogram()` Returns a Histogram gallery object.
`NPChart`	`getNPChart()` Returns a NPChart gallery object.
`Ogive`	`getOgive()` Returns a Ogive gallery object.
`PChart`	`getPChart()` Returns a PChart gallery object.
`RChart`	`getRChart()` Returns a RChart gallery object.
`Regression`	`getRegression()` Returns a Regression gallery object.
`XChart`	`getXChart()` Returns a XChart gallery object.
`void`	`setCurrent(com.softwarefx.chartfx.server.statistical.Galleries.Gallery value)` Sets the current statistical gallery.

Methods inherited from class java.lang.Object
`equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait`

Constructor Detail

Galleries

public Galleries()

Method Detail

getBoxPlot

public BoxPlot getBoxPlot()

Returns a BoxPlot gallery object.

Remarks:: The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the BoxPlot statistical chart:; This property exposes a BoxPlot object, please see the BoxPlot class for the supported members allowing customization of this object.; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: Statistics.getGallery(), BoxPlot, Statistics

getCurrent

public com.softwarefx.chartfx.server.statistical.Galleries.Gallery getCurrent()

Gets the Current. For more detail see setCurrent(com.softwarefx.chartfx.server.statistical.Galleries.Gallery).

getFrequencyPolygon

public FrequencyPolygon getFrequencyPolygon()

Returns a FrequencyPolygon gallery object.

Remarks:: The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the FrequencyPolygon statistical chart:; This property exposes an FrequencyPolygon object which may by use the FrequencyPolygon class to modify attributes. This class is derived form the IntervalChart class however, so please also see the IntervalChart class for the supported members allowing customization of this object.; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: Statistics.getGallery(), IntervalChart, FrequencyPolygon, Statistics

getHistogram

public Histogram getHistogram()

Returns a Histogram gallery object.

Remarks:: The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the Histogram statistical chart:; This property exposes an FrequencyPolygonHistogram object which may by use the Histogram class to modify attributes. This class is derived form the IntervalChart class however, so please also see the IntervalChart class for the supported members allowing customization of this object.; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: Statistics.getGallery(), Histogram, IntervalChart, Statistics

getNPChart

public NPChart getNPChart()

Returns a NPChart gallery object.

Remarks:: The NPChart is one of the Statistical Process Control (SPC) chart galleries available in the Galleries class. Others include the getPChart(), getRChart(), and getXChart().; The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the NPChart statistical chart:

chart1.GalleryObj = statistics1.Gallery.NPChart;; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: getPChart(), getRChart(), getXChart(), Statistics.getGallery(), Statistics

getOgive

public Ogive getOgive()

Returns a Ogive gallery object.

Remarks:: The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the Ogive statistical chart:; This property exposes an Ogive object, however, please see the IntervalChart class for the supported members allowing customization of this object.; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: getBoxPlot(), getFrequencyPolygon(), getHistogram(), getRegression(), Statistics.getGallery(), IntervalChart, Statistics

getPChart

public PChart getPChart()

Returns a PChart gallery object.

Remarks:: The PChart is one of the Statistical Process Control (SPC) chart galleries available in the Galleries class. Others include the getNPChart(), getRChart(), and getXChart().; The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the PChart statistical chart:

chart1.GalleryObj = statistics1.Gallery.PChart;; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: getNPChart(), getRChart(), getXChart(), Statistics.getGallery(), Statistics

getRChart

public RChart getRChart()

Returns a RChart gallery object.

Remarks:: The RChart is one of the Statistical Process Control (SPC) chart galleries available in the Galleries class. Others include the getNPChart(), getPChart(), and getXChart().; The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the RChart statistical chart:

chart1.GalleryObj = statistics1.Gallery.RChart;; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: getNPChart(), getPChart(), getXChart(), Statistics.getGallery(), Statistics

getRegression

public Regression getRegression()

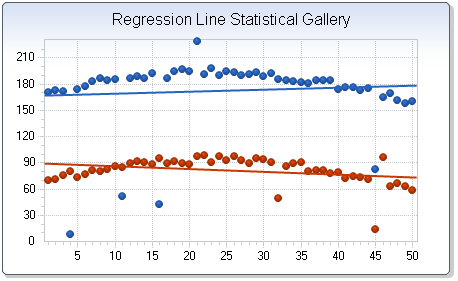

Returns a Regression gallery object.

Remarks:: The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the Regression statistical chart:; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: getBoxPlot(), getFrequencyPolygon(), getHistogram(), getOgive(), Statistics.getGallery(), Statistics

getXChart

public XChart getXChart()

Returns a XChart gallery object.

Remarks:: The XChart is one of the Statistical Process Control (SPC) chart galleries available in the Galleries class. Others include the getNPChart(), getPChart(), and getRChart().; The Statistical extension supports a number of new gallery types. In order to set one of the supported gallery types to the chart, you must set the chart's GalleryObj equal to the desired statistic gallery. The following code could be used to configure the XChart statistical chart:

chart1.GalleryObj = statistics1.Gallery.XChart;; The Statistics.getGallery() property of the Statistics class allows you to access this property.

See Also:: getNPChart(), getPChart(), getRChart(), Statistics.getGallery(), Statistics

setCurrent

public void setCurrent(com.softwarefx.chartfx.server.statistical.Galleries.Gallery value)

Sets the current statistical gallery.

Remarks:: You may configure the gallery for the chart using the chart's GalleryObj property, or using this property (Both these code snippets do the same thing):

chart1.GalleryObj = statistics1.Gallery.Regression;

statistics1.Gallery.Current = Galleries.Gallery.Regression;; This property is probably most useful to the developer when identifying which gallery is currently selected in the chart.
