com.softwarefx.chartfx.desktop
Class Line

java.lang.Object
  com.softwarefx.chartfx.desktop.Line

All Implemented Interfaces:

Serializable

Direct Known Subclasses:

CustomGridLine, GridLine

public class Line
extends Object
implements Serializable

Provides access to the Line object.

Using these properties you can set the color, width and style of many line objects including Axis, GridLine and CustomGridLine.

Members also allow for shapes to be applied to all the supported line objects. This allows for interesting design ideas such as an Axis representing a thermometer.

See Also:

Serialized Form

Constructor Summary

Line()

Method Summary

Color	getColor() Gets the Color.
com.softwarefx.LineCap	getEndCap() Gets the EndCap.
com.softwarefx.LineCap	getStartCap() Gets the StartCap.
com.softwarefx.DashStyle	getStyle() Gets the Style.
int	getWidth() Gets the Width.
void	setColor(Color value) Sets or Gets the line color for a selected line.
void	setEndCap(com.softwarefx.LineCap value) Sets a marker shape at the end of a selected line.
void	setStartCap(com.softwarefx.LineCap value) Sets a marker shape at the beginning of a selected line.
void	setStyle(com.softwarefx.DashStyle value) Sets the line style for a selected line.
void	setWidth(int value) Sets the line width for a selected line.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Line

public Line()

Method Detail

getColor

public Color getColor()

Gets the Color. For more detail see setColor(java.awt.Color).

getEndCap

public com.softwarefx.LineCap getEndCap()

Gets the EndCap. For more detail see setEndCap(com.softwarefx.LineCap).

getStartCap

public com.softwarefx.LineCap getStartCap()

Gets the StartCap. For more detail see setStartCap(com.softwarefx.LineCap).

getStyle

public com.softwarefx.DashStyle getStyle()

Gets the Style. For more detail see setStyle(com.softwarefx.DashStyle).

getWidth

public int getWidth()

Gets the Width. For more detail see setWidth(int).

setColor

public void setColor(Color value)

Sets or Gets the line color for a selected line.

Remarks:

When this property is applied to an axis line, both the primary and secondary axes are affected. For instance, when you change the X axis line color using this property, both axes lines above and below the chart area will be colored.

You may also control the setWidth(int) and setStyle(com.softwarefx.DashStyle) of the selected line using the supported members of the Line Class .

The setEndCap(com.softwarefx.LineCap) and setStartCap(com.softwarefx.LineCap) properties allow you to configured various shapes at the beginning and ending of a selected line.

For more information regarding the Color type, please refer to the Java API Documentation.

Named color are supported (e.g. Red), to use Hex notation you have to use quotes (e.g. "#FF00FF").

Below, the X axis line color is set to red:

See Also:

setEndCap(com.softwarefx.LineCap), setStartCap(com.softwarefx.LineCap), setStyle(com.softwarefx.DashStyle), setWidth(int), Chart.getAxisY(), Chart.getAxisX(), Chart, Axis, GridLine

setEndCap

public void setEndCap(com.softwarefx.LineCap value)

Sets a marker shape at the end of a selected line.

Remarks:

When this property is applied to an axis line, both the primary and secondary axes are affected. For instance, when you change the X axis EndCap using this property, both axes lines above and below the chart area will be modified.

A starting marker shape may be applied to lines using the setStartCap(com.softwarefx.LineCap) property.

You can also control setColor(java.awt.Color), setStyle(com.softwarefx.DashStyle) and setWidth(int) for a selected line object using the supported members of the Line Class .

These are the supported styles:
AnchorMask
ArrowAnchor
Custom
DiamondAnchor
Flat
NoAnchor
Round
RoundAnchor
Square
SquareAnchor
Triangle

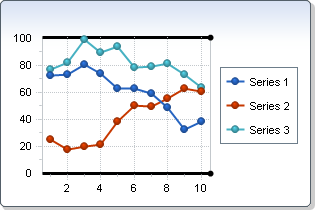

Below, the X axis line EndCap is set to RoundAnchor:

See Also:

setStartCap(com.softwarefx.LineCap), setColor(java.awt.Color), setStyle(com.softwarefx.DashStyle), setWidth(int), Chart.getAxisX(), Chart.getAxisY(), Chart, Axis, GridLine

setStartCap

public void setStartCap(com.softwarefx.LineCap value)

Sets a marker shape at the beginning of a selected line.

Remarks:

When this property is applied to an axis line, both the primary and secondary axes are affected. For instance, when you change the X axis StartCap using this property, both axes lines above and below the chart area will be modified.

An ending marker shape may be applied to lines using the setEndCap(com.softwarefx.LineCap) property.

You can also control setColor(java.awt.Color), setStyle(com.softwarefx.DashStyle) and setWidth(int) for a selected line object using the supported members of the Line Class .

These are the supported styles:
AnchorMask
ArrowAnchor
Custom
DiamondAnchor
Flat
NoAnchor
Round
RoundAnchor
Square
SquareAnchor
Triangle

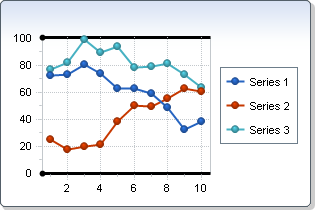

Below, the X axis line StartCap is set to RoundAnchor:

See Also:

setEndCap(com.softwarefx.LineCap), setColor(java.awt.Color), setStyle(com.softwarefx.DashStyle), setWidth(int), Chart.getAxisX(), Chart.getAxisY(), Chart, Axis, GridLine

setStyle

public void setStyle(com.softwarefx.DashStyle value)

Sets the line style for a selected line.

Remarks:

When this property is applied to an axis line, both the primary and secondary axes are affected. For instance, when you change the X axis line style using this property, both axes lines above and below the chart area will be affected.

You may also control the setWidth(int) and setColor(java.awt.Color) of the selected line using the supported members of the Line Class .

The setEndCap(com.softwarefx.LineCap) and setStartCap(com.softwarefx.LineCap) properties allow you to configured various shapes at the beginning and ending of a selected line.

These are the supported DashStyles:
Custom
Dash
DashDot
DashDotDot
Dot
Solid

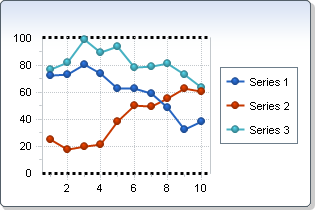

The image below depicts a 'Dot' Line style assigned to the Y axis:

For more information regarding the Drawing type, please refer to the Java API Documentation.

See Also:

setEndCap(com.softwarefx.LineCap), setStartCap(com.softwarefx.LineCap), setColor(java.awt.Color), setWidth(int), Chart.getAxisY(), Chart.getAxisX(), Chart, Axis, GridLine

setWidth

public void setWidth(int value)

Sets the line width for a selected line.

Remarks:

When this property is applied to an axis line, both the primary and secondary axes are affected. For instance, when you change the X axis line width using this property, both axes lines above and below the chart area will be affected.

You may also control the setStyle(com.softwarefx.DashStyle) and setColor(java.awt.Color) of the selected line using the supported members of the Line Class .

The setEndCap(com.softwarefx.LineCap) and setStartCap(com.softwarefx.LineCap) properties allow you to configured various shapes at the beginning and end of a selected line.

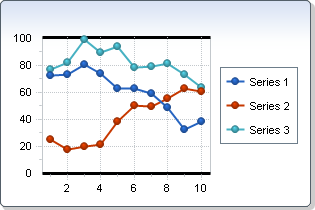

Below, the X axis line width is set to 3:

See Also:

setEndCap(com.softwarefx.LineCap), setStartCap(com.softwarefx.LineCap), setStyle(com.softwarefx.DashStyle), setColor(java.awt.Color), Chart.getAxisY(), Chart.getAxisX(), Chart, Axis, GridLine
