com.softwarefx.chartfx.server
Class CustomLegendItem

java.lang.Object
  com.softwarefx.chartfx.server.CustomLegendItem

All Implemented Interfaces:

ILegendBoxItem

public class CustomLegendItem
extends Object
implements ILegendBoxItem

Provides access to the customization features for a particular CustomLegendItem.

A CustomLegendItem is an additional item added to the legend of a chart that contains relevant information to explain what is being depicted in a chart.

The CustomLegendItem fills the void when the series legend and values cannot convey the desired information. The supported members of the CustomLegendItem allow you to configure and add extra legend items to the standard legend box.

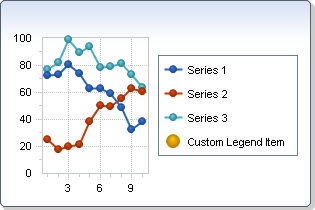

The CustomLegendItem needs to be created and added to the chart, as shown in the following example:

CustomLegendItem c = new CustomLegendItem();

c.setText("Custom Legend Item");

c.setMarkerShape(MarkerShape.MARBLE);

c.setColor(java.awt.Color.ORANGE);

chart1.getLegendBox().getCustomItems().add(c);

Constructor Summary

CustomLegendItem()

Method Summary

Color	getAlternateColor() Gets the AlternateColor.
PointAttributes	getAttributes() Gets the Attributes.
BorderAttributes	getBorder() Gets a BorderAttributes object allowing you to modify the border properties for this CustomLegendItem.
Color	getColor() Gets the Color.
Link	getLink() Gets the Linkobject allowing you to associate a url to a CustomLegendItem.
MarkerShape	getMarkerShape() Gets the MarkerShape.
HatchStyle	getPattern() Gets the Pattern.
Image	getPicture() Gets the Picture.
String	getText() Gets the Text.
boolean	isShowLine() Gets the ShowLine.
void	setAlternateColor(Color value) Sets the background color of a custom legend item marker when a pattern is configured using the Pattern property.
void	setAttributes(PointAttributes value) Sets the PointAttributes object for the custom legend item.
void	setColor(Color value) Sets the Color for the marker of the Custom Legend Item.
void	setMarkerShape(MarkerShape value) Represents the shape of the marker.
void	setPattern(HatchStyle value) Sets a HatchStyle pattern for the marker of a CustomLegendItem.
void	setPicture(Image value) Sets an image to be used as a marker for a CustomLegendItem.
void	setShowLine(boolean value) Sets a value used to display a line marker for a CustomLegendItem.
void	setText(String value) Sets the text string of the custom legend item.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

CustomLegendItem

public CustomLegendItem()

Method Detail

getAlternateColor

public Color getAlternateColor()

Gets the AlternateColor. For more detail see setAlternateColor(java.awt.Color).

getAttributes

public PointAttributes getAttributes()

Gets the Attributes. For more detail see setAttributes(com.softwarefx.chartfx.server.PointAttributes).

getBorder

public BorderAttributes getBorder()

Gets a BorderAttributes object allowing you to modify the border properties for this CustomLegendItem.

Remarks:

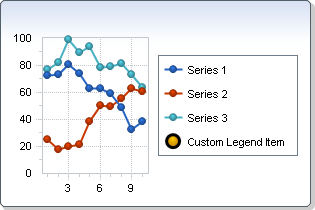

Below, the border color for the custom legend item is set to Black:

See Also:

setColor(java.awt.Color), getLink(), setPicture(java.awt.Image), setText(java.lang.String), BorderAttributes

getColor

public Color getColor()

Gets the Color. For more detail see setColor(java.awt.Color).

getLink

public Link getLink()

Gets the Linkobject allowing you to associate a url to a CustomLegendItem.

Remarks:

Developers may obtain the Link object for a PointAttributes item using this property. Using the supported Link Class members, developers may configure a Link.setUrl(java.lang.String) and Link.setTarget(java.lang.String) for the object.

See Also:

Link

getMarkerShape

public MarkerShape getMarkerShape()

Gets the MarkerShape. For more detail see setMarkerShape(com.softwarefx.chartfx.server.MarkerShape).

getPattern

public HatchStyle getPattern()

Gets the Pattern. For more detail see setPattern(com.softwarefx.HatchStyle).

getPicture

public Image getPicture()

Gets the Picture. For more detail see setPicture(java.awt.Image).

getText

public String getText()

Gets the Text. For more detail see setText(java.lang.String).

isShowLine

public boolean isShowLine()

Gets the ShowLine. For more detail see setShowLine(boolean).

setAlternateColor

public void setAlternateColor(Color value)

Sets the background color of a custom legend item marker when a pattern is configured using the Pattern property.

Remarks:

The forecolor of the pattern is configured using the setColor(java.awt.Color) property.

Named colors are supported (e.g. Red), to use Hex notation you have to use quotes (e.g. "#FF00FF").

For more information regarding the Color type, please refer to the Java API Documentation.

See Also:

setColor(java.awt.Color), setMarkerShape(com.softwarefx.chartfx.server.MarkerShape)

setAttributes

public void setAttributes(PointAttributes value)

Sets the PointAttributes object for the custom legend item.

Remarks:

The Attributes property is used to obtain the PointAttributes object for a CustomLegendItem. This allows the developer to apply unique visual attributes for the legend item.

Please see the the PointAttributes Class for additional information regarding the supported members.

See Also:

SeriesAttributes, PointAttributes

setColor

public void setColor(Color value)

Sets the Color for the marker of the Custom Legend Item.

Remarks:

Named colors are supported (e.g. Red), to use Hex notation you have to use quotes (e.g. "#FF00FF").

For more information regarding the Color type, please refer to the Java API Documentation.

setMarkerShape

public void setMarkerShape(MarkerShape value)

Represents the shape of the marker.

Remarks:

If you hide the markers using the MarkerShape.NONE property, labels will be numbered.

The MarkerShape BorderAttributes may be configured by accessing the getBorder() property.

See Also:

setPicture(java.awt.Image), setPattern(com.softwarefx.HatchStyle)

setPattern

public void setPattern(HatchStyle value)

Sets a HatchStyle pattern for the marker of a CustomLegendItem.

Remarks:

The forecolor of the pattern is configured using the setColor(java.awt.Color) property. The background color of the pattern is configured using the setAlternateColor(java.awt.Color) property.

These are the supported styles:

Horizontal
Min
Vertical
ForwardDiagonal
BackwardDiagonal
Cross
LargeGrid
Max
DiagonalCross
Percent05
Percent10
Percent20
Percent25
Percent30
Percent40
Percent50
Percent60
Percent70
Percent75
Percent80
Percent90
LightDownwardDiagonal
LightUpwardDiagonal
DarkDownwardDiagonal
DarkUpwardDiagonal
WideDownwardDiagonal
WideUpwardDiagonal
LightVertical
LightHorizontal
NarrowVertical
NarrowHorizontal
DarkVertical
DarkHorizontal
DashedDownwardDiagonal
DashedUpwardDiagonal
DashedHorizontal
DashedVertical
SmallConfetti
LargeConfetti
ZigZag
Wave
DiagonalBrick
HorizontalBrick
Weave
Plaid
Divot
DottedGrid
DottedDiamond
Shingle
Trellis
Sphere
SmallGrid
SmallCheckerBoard
LargeCheckerBoard
OutlinedDiamond
SolidDiamond

See HatchStyle in the Java API .

See Also:

setPicture(java.awt.Image), setMarkerShape(com.softwarefx.chartfx.server.MarkerShape)

setPicture

public void setPicture(Image value)

Sets an image to be used as a marker for a CustomLegendItem.

Remarks:

Setting this property will override any settings configured using the setMarkerShape(com.softwarefx.chartfx.server.MarkerShape) property.

See Also:

setPattern(com.softwarefx.HatchStyle), setMarkerShape(com.softwarefx.chartfx.server.MarkerShape), PointAttributes.setPicture(java.awt.Image)

setShowLine

public void setShowLine(boolean value)

Sets a value used to display a line marker for a CustomLegendItem.

Remarks:

The setMarkerShape(com.softwarefx.chartfx.server.MarkerShape) property may be used in combination with this property to display a different marker shape.

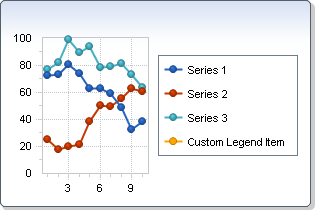

Below, the ShowLine property from the custom legend item is set to true:

See Also:

setMarkerShape(com.softwarefx.chartfx.server.MarkerShape)

setText

public void setText(String value)

Sets the text string of the custom legend item.

Remarks:

The Text property of the LegendBox object is used to access the CustomLegendItemCollection object of a chart. By accessing a CustomLegendItem from the collection, you can modify the text of the item using this property.

The LegendItemAttributes.setTextColor(java.awt.Color) property is used to control the color for a legend's text.

See Also:

LegendItemAttributes.setTextColor(java.awt.Color), LegendBox
