com.softwarefx.chartfx.server.adornments
Class ImageBorder

java.lang.Object
  com.softwarefx.chartfx.server.adornments.ImageBorder

All Implemented Interfaces:

IBorderAdornment

public class ImageBorder
extends Object
implements IBorderAdornment

Provides access to the ImageBorder object.

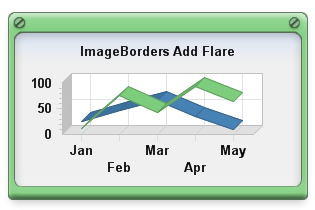

When thinking about of all the features built into Chart FX for Java geared to enhance the chart's presentation layer, none stand out more than Image Borders.

Image Borders add the graphic pizzazz required in today's applications.

Use the ImageBorder's properties to configure the Border of the Chart, as well as the DockableBar.setBorder(com.softwarefx.chartfx.server.DockBorder)of the DockableBarsuch as the DataGridthe LegendBox, or the Chart.getToolBar().

Important Note : To set the image border of a chart in your applications, you must reference the Adornments assembly in your project.

Please see the setType(com.softwarefx.chartfx.server.adornments.ImageBorderType) property for a complete list of the supported ImageBorder enumerations.

Constructor Summary

ImageBorder()

ImageBorder(ImageBorderType type)

ImageBorder(ImageBorderType type, Color color)

ImageBorder(String fileName)

Method Summary

void	draw(Graphics2D g, Rectangle r, Color clrExternal) Draws a Chart FX ImageBorder on a selected device context.
Color	getColor() Gets the Color.
ImageBorderType	getType() Gets the Type.
void	setColor(Color value) Sets the color of the border.
void	setType(ImageBorderType value) Sets the type for the image border.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

ImageBorder

public ImageBorder()

ImageBorder

public ImageBorder(ImageBorderType type)

ImageBorder

public ImageBorder(String fileName)

ImageBorder

public ImageBorder(ImageBorderType type,
                   Color color)

Method Detail

draw

public void draw(Graphics2D g,
                 Rectangle r,
                 Color clrExternal)

Draws a Chart FX ImageBorder on a selected device context.

Remarks:

This method allows you to draw an ImageBorder to a selected device context without ever assigning this border to a chart.

Parameters:

g - A Graphics object is associated with a specific device context.

r - A Rectangle object specifying the desired position and size of the border.

clrExternal - The color for the Image border.

See Also:

setColor(java.awt.Color), setType(com.softwarefx.chartfx.server.adornments.ImageBorderType), SimpleBorder.draw(java.awt.Graphics2D, java.awt.Rectangle, java.awt.Color), SolidBackground.draw(java.awt.Graphics2D, java.awt.Rectangle, java.awt.Color), GradientBackground.draw(java.awt.Graphics2D, java.awt.Rectangle, java.awt.Color), ImageBackground.draw(java.awt.Graphics2D, java.awt.Rectangle, java.awt.Color), Chart, SolidBackground, GradientBackground, ImageBackground

getColor

public Color getColor()

Gets the Color. For more detail see setColor(java.awt.Color).

Specified by:

getColor in interface IBorderAdornment

getType

public ImageBorderType getType()

Gets the Type. For more detail see setType(com.softwarefx.chartfx.server.adornments.ImageBorderType).

setColor

public void setColor(Color value)

Sets the color of the border.

Remarks:

Not all ImageBorders have a outlining border to use this property. If the border does not include a border, the setting will have no effect.

The Chart FX ImageBorders use shading to give a multidimensional effect. The Chart.setPageColor(java.awt.Color) property can be used to modify the background color of the shaded area around ImageBorders.

For more information regarding the Color type, please refer to the Java API Documentation.

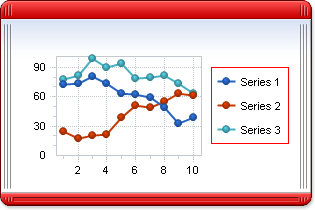

Here is an example of the 'Colonial' ImageBorder with the border color turned to red:

Specified by:

setColor in interface IBorderAdornment

See Also:

Chart.setBorder(com.softwarefx.chartfx.server.adornments.IBorderAdornment), DockableBar.setBorder(com.softwarefx.chartfx.server.DockBorder), setType(com.softwarefx.chartfx.server.adornments.ImageBorderType), Chart.setPageColor(java.awt.Color), Chart, DockableBar

setType

public void setType(ImageBorderType value)

Sets the type for the image border.

Remarks:

Once you create the image border object, you may assign attributes to the object with the supported ImageBorder properties.

See Also:

Chart.setBorder(com.softwarefx.chartfx.server.adornments.IBorderAdornment), DockableBar.setBorder(com.softwarefx.chartfx.server.DockBorder), setColor(java.awt.Color), Chart, DockableBar, SimpleBorder
