com.softwarefx.chartfx.server.galleries
Class Bubble

java.lang.Object
  com.softwarefx.chartfx.server.galleries.Bubble

All Implemented Interfaces:

IGallery

public class Bubble
extends Object
implements IGallery

Provides access to the Bubble gallery object.

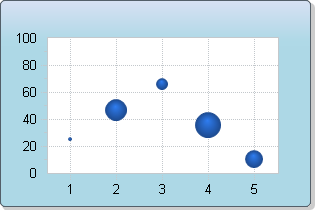

A Bubble chart compares a set of two series with the second of the series specifying the size of the bubble marker, and the first series specifying the location in Y axis where the bubble center is painted.

The properties of the Bubble Class allow you to customize the visual attributes of a Bubble chart. In order to make the supported members available, you must first set the gallery of the chart to Bubble, and cast the Chart.setGalleryAttributes(com.softwarefx.chartfx.server.IGallery) property of the Chart to the Bubble Class :

Bubble bubble = (Bubble) chart1.getGalleryAttributes();

The cast will fail if the gallery is not set to Bubble.

Once you have done this, using the newly created object you can assign these special attributes for the Bubble gallery type in your chart.

When configures bubble charts, you must be aware that the PointAttributes.setVolume(short) property has a specific effect on the way bubble charts are displayed as the Size will be divided by the setting in the Volume property. For example, if the PointAttributes.setVolume(short) property is set to 50, it means that Chart FX for Java will force the marker to occupy 1/2 of the space allotted. When you set the bubble size to 100, you would expect the bubble to occupy the entire space allotted; however in this case the bubble will only occupy 1/2 of the space allotted. Similarly, if the Volume is set to 50 and the bubble size is 50, the bubble will occupy 1/4 of the space allotted.

Constructor Summary

Bubble()

Method Summary

int	getMaximumBubbleSize() Gets the MaximumBubbleSize.
void	setMaximumBubbleSize(int value) Sets the maximum size a bubble can be in the Bubble chart.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Bubble

public Bubble()

Method Detail

getMaximumBubbleSize

public int getMaximumBubbleSize()

Gets the MaximumBubbleSize. For more detail see setMaximumBubbleSize(int).

setMaximumBubbleSize

public void setMaximumBubbleSize(int value)

Sets the maximum size a bubble can be in the Bubble chart.

Remarks:

The values are relative; so a MaxSize of 50 shows bubbles smaller than a MaxSize of 100.

There is no limit to the MaxSize, however 100 usually creates a bubble the size of the chart and any larger values would simply occupy the chart screen reducing the charts usefulness.
