com.softwarefx.chartfx.server.galleries
Class Pyramid

java.lang.Object
  com.softwarefx.chartfx.server.galleries.Pyramid

All Implemented Interfaces:

IGallery

public class Pyramid
extends Object
implements IGallery

Provides access to the Pyramid gallery object.

The properties of the Pyramid Class allow you to customize the visual attributes of a Pyramid chart. In order to make the supported members available, you must first set the gallery of the chart to Pyramid, and cast the Chart.setGalleryAttributes(com.softwarefx.chartfx.server.IGallery) property of the Chart to the Pyramid Class :

Pyramid pyramid = (Pyramid) chart1.getGalleryAttributes();

The cast will fail if the gallery is not set to Pyramid.

Once you have done this, using the newly created object you can assign these special attributes for the Pyramid gallery type in your chart.

Constructor Summary

Pyramid()

Method Summary

int	getFaces() Gets the Faces.
int	getSeparation() Gets the Separation.
boolean	isConic() Gets the Conic.
boolean	isInverted() Gets the Inverted.
boolean	isShadow2D() Gets the Shadow2D.
void	setConic(boolean value) Determines whether or not the pyramid will show with a Conic effect.
void	setFaces(int value) Determines how many Faces the pyramid has.
void	setInverted(boolean value) Determines if the pyramid is displayed upside-down or right-side up.
void	setSeparation(int value) Determines how many pixels each segment of the pyramid is separated by.
void	setShadow2D(boolean value) Determines if the pyramid as a shadow that gives a 2D chart a 3D look.

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Pyramid

public Pyramid()

Method Detail

getFaces

public int getFaces()

Gets the Faces. For more detail see setFaces(int).

getSeparation

public int getSeparation()

Gets the Separation. For more detail see setSeparation(int).

isConic

public boolean isConic()

Gets the Conic. For more detail see setConic(boolean).

isInverted

public boolean isInverted()

Gets the Inverted. For more detail see setInverted(boolean).

isShadow2D

public boolean isShadow2D()

Gets the Shadow2D. For more detail see setShadow2D(boolean).

setConic

public void setConic(boolean value)

Determines whether or not the pyramid will show with a Conic effect.

Remarks:

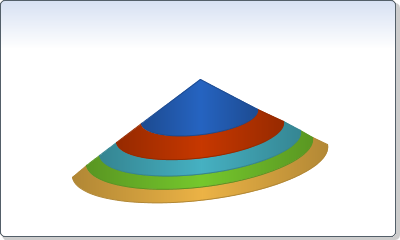

The following chart is an example of Conic and View3D set to true.

setFaces

public void setFaces(int value)

Determines how many Faces the pyramid has.

Remarks:

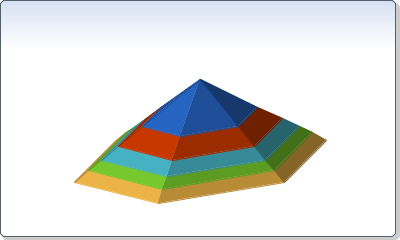

Changes to the Faces property will only be noticed if the chart is set to 3D. This is an example of a pyramid chart with 6 faces.

The default value for Faces property is 4.

The minimum value for this property is 3. If you set the Faces property to a lower value, will reset it to the minimum.

setInverted

public void setInverted(boolean value)

Determines if the pyramid is displayed upside-down or right-side up.

Remarks:

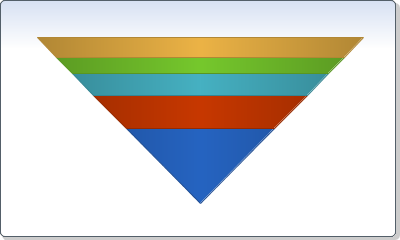

Here is an example of an inverted pyramid chart.

setSeparation

public void setSeparation(int value)

Determines how many pixels each segment of the pyramid is separated by.

Remarks:

By default, each segment of the pyramid is separated by 5 pixels.

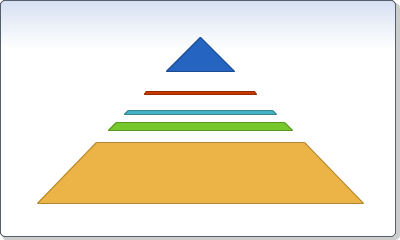

The following is an example of a pyramid with Separation set to 20 pixels.

setShadow2D

public void setShadow2D(boolean value)

Determines if the pyramid as a shadow that gives a 2D chart a 3D look.

Remarks:

Here is an example of a pyramid chart with the Shadow2D property set to true.
